Prebuilt and ready for immediate adventure.

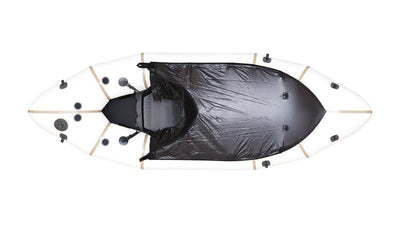

White
White

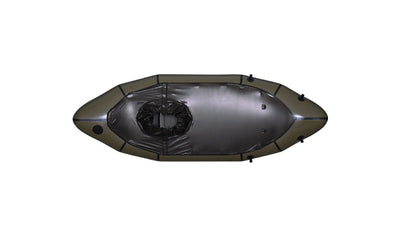

Olive
Olive
Olive
Olive
Configure your perfect build.
In stock, ready to ship
Streamlined Ultra-light
Surveyor, designed to reduce weight in all aspects, retains the streamlined hull as much as possible. The centered seating position optimizes the boat’s planing ability. The backrest has been redesigned to provide even support while maintaining breathability. Comfort is excellent for this weight class. It is a difficult choice between carrying weight and paddling experience while designing. At the same time, the pakcraft need also hold all the land equipment you carry.
The white surface is a special solution. White absorbs less heat from strong sunlight and does not cause large air pressure fluctuations, which is especially convenient outdoors.
Olive is a very good hiding color, the coating is slightly thicker than white, the scratch resistance is improved, and it is still light and easy to fold.
Size
| Packraft | Surveyor |
| Length (outer) | 106 in (268 cm) |
| Length (inner) | 61 in (155 cm) |
| Width (outer) | 37 in (93 cm) |
| Width (inner) | 15 in (37 cm) |
| Water line (length) | 99 in (251 cm) |
| Water line (width) | 35 in (89 cm) |
| Tube | 11 in (28 cm) |
| Seat height | 5 in (12 cm) |
Weight
| Item | Surveyor (Open) White | Surveyor (Open) Olive | Surveyor + Spraydeck White | Surveyor + Spraydeck Olive | Material |
| Boat | 4.3 lb (1950 g) | 5.0 lb (2290 g) | 5.2 lb (2380 g) | 6.0 lb (2720 g) | 0.07 mm coating (white) / 0.10 mm coating (olive), 210D |
| Seat (removable) | 6.7 oz (190 g) | 0.10 mm coating (light gray), 70D | |||
| Backrest (removable) | 5.4 oz (152 g) | Ultra-light breathable mesh | |||
| Fin | 3.0 oz (86 g) | ||||
| Inflation bag | 4.8 oz (135 g) | Silicone-coated CORDURA® 30D | |||
| Tie strap | 0.9 oz (25 g) | ||||
| Tizip airtight zipper (internal storage) | 3.1 oz (88 g) | ||||
| Ultra-light spraydeck | — | — | 0.7 lb (333 g) | 0.7 lb (333 g) | |
| Total weight | 5.2 lb (2380 g) | 5.8 lb (2620 g) | 6.4 lb (2890 g) | 6.9 lb (3140 g) | |
| Recommended paddler weight | 287 lb (130 kg) | ||||
| Recommended capacity | 408 lb (185 kg) | ||||

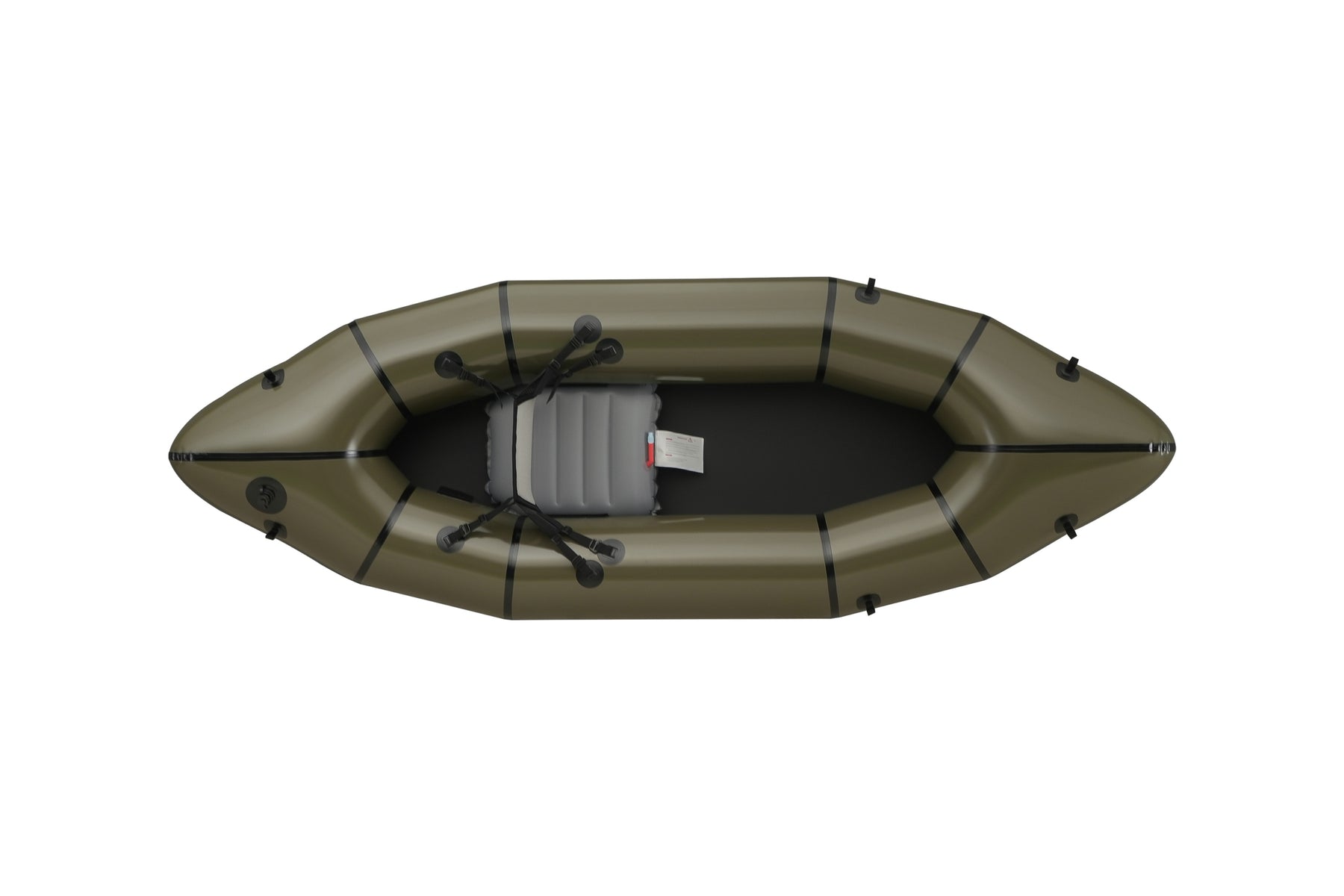

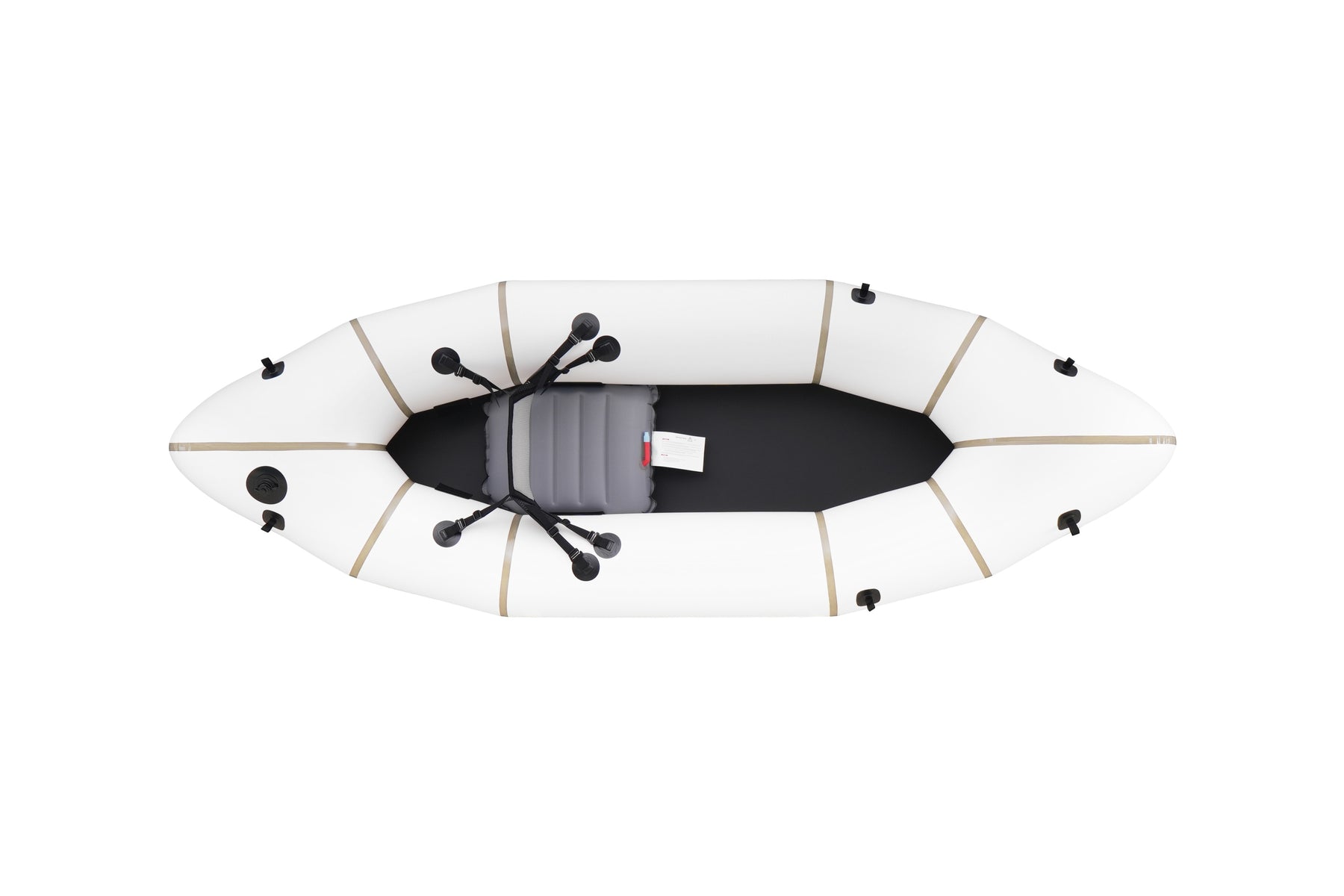

Surveyor (Open)

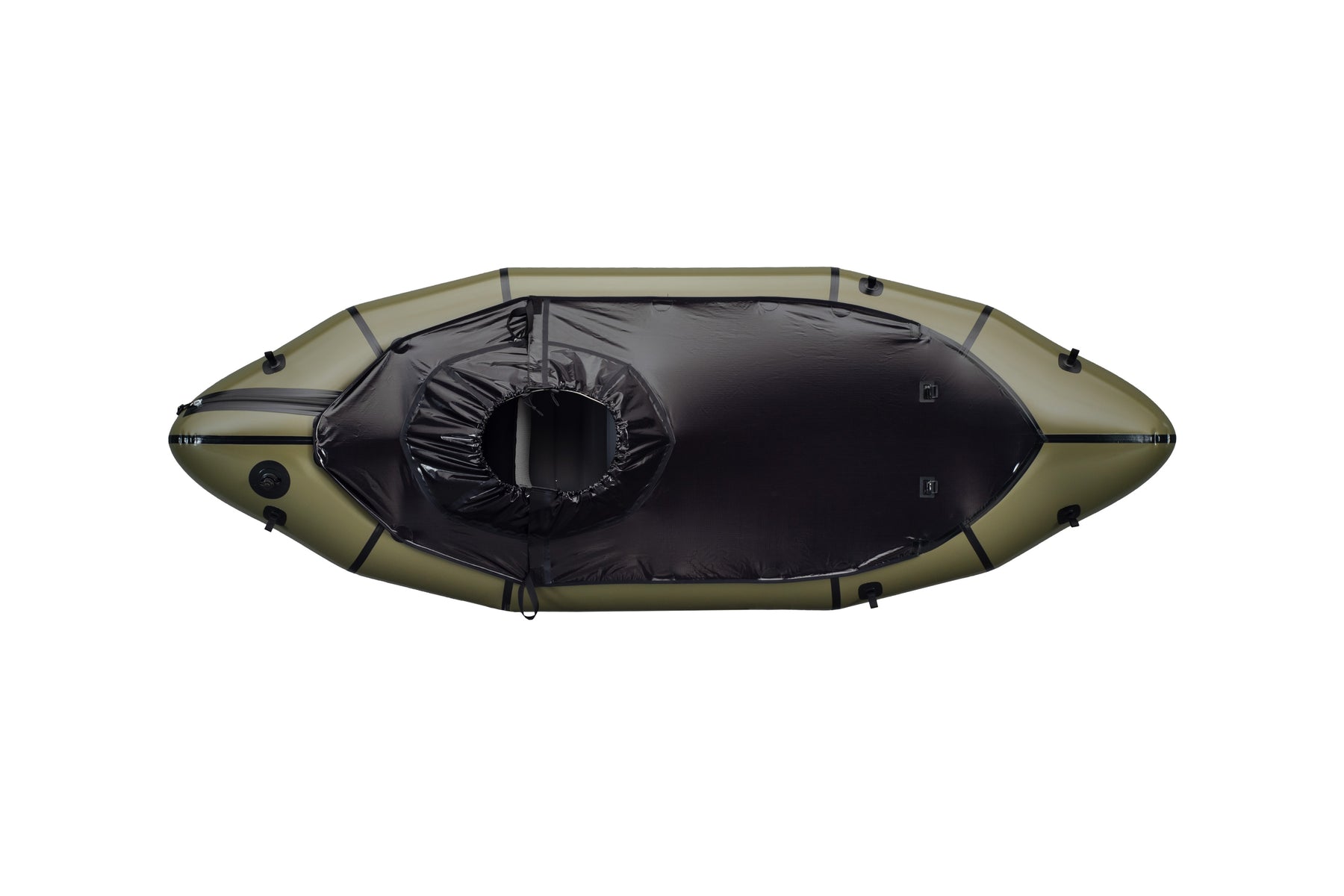

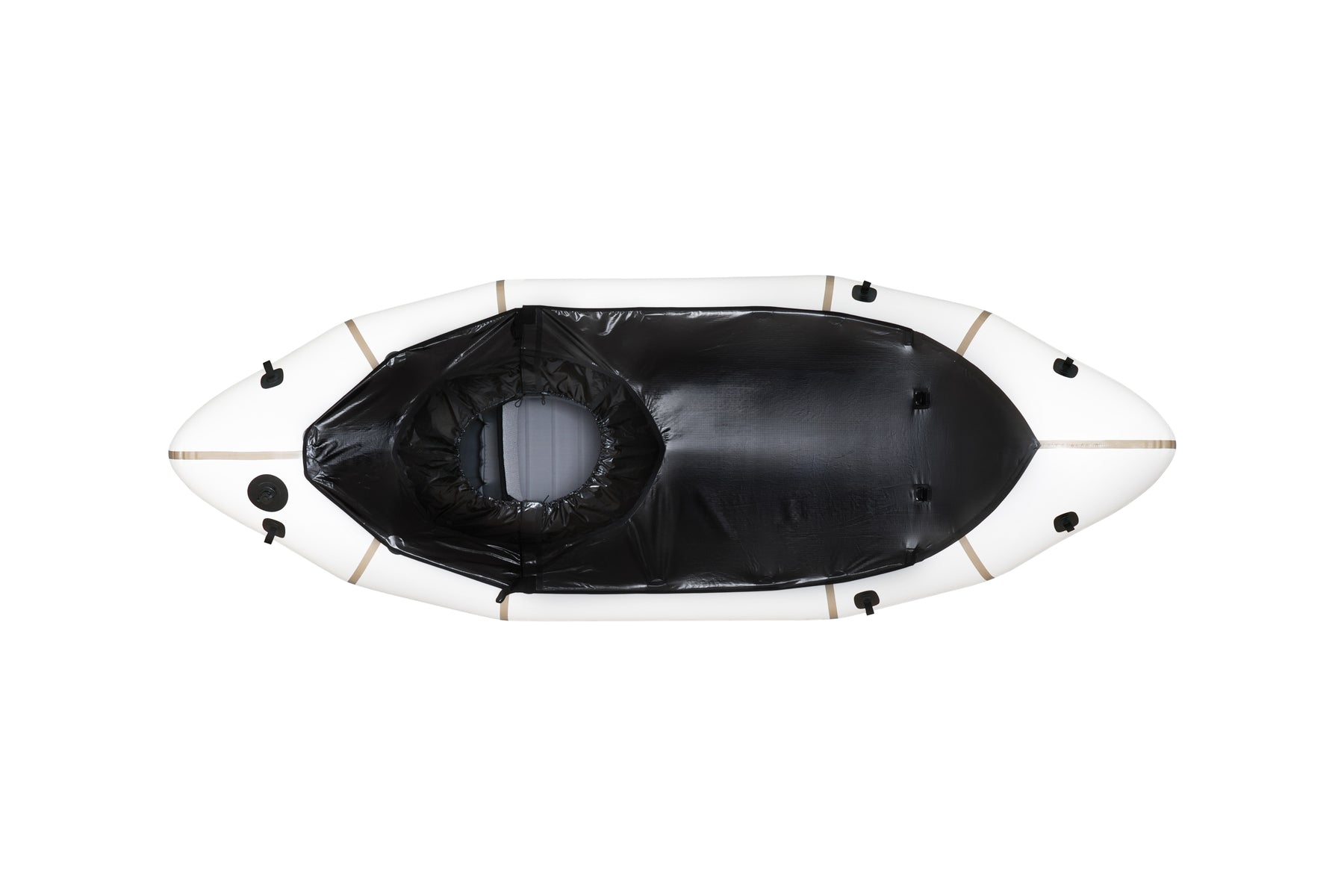

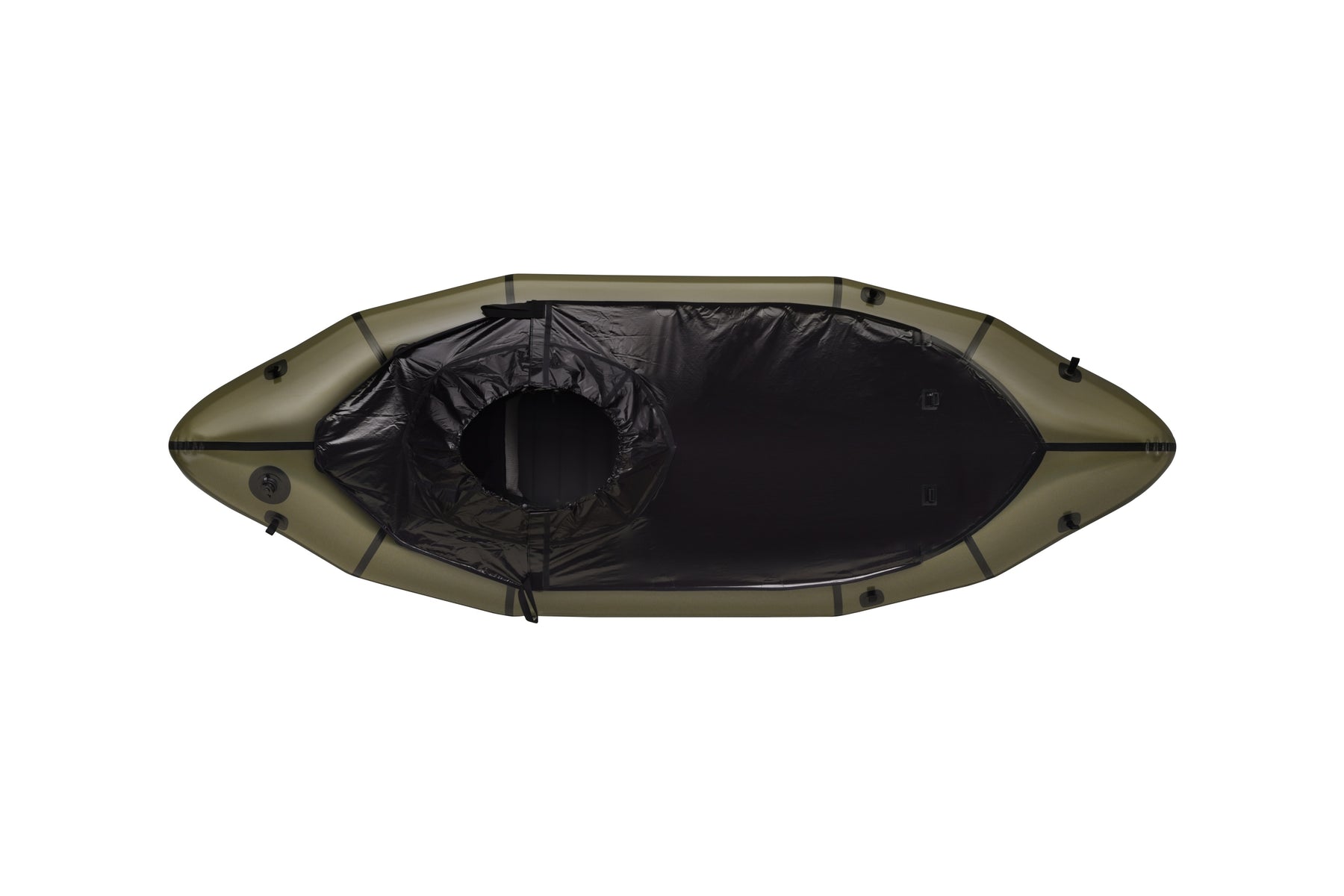

Surveyor + Spraydeck
Features
- Streamlined hull, centered seats, balanced center of gravity layout.
- The seat back is supported so the packraft floor does not sag.
- Optional Tizip airtight zippers can be added to expand internal storage.
- The floor material covers the bottom of the packraft, which is protective, and the bottom is glued, which is less harmful to the ultra-thin coating than the hot pressing process.
- The temperature of the white hull is less affected by the sun, avoiding repeated air replenishment.
Notes
- As white fabric is a light color, it will become yellow easier than other colors when exposed to ultraviolet rays. Please pay attention to maintenance (long-term use and slight warming yellowing cannot be completely avoided, please consider it when choosing this color!).
- Since the coating of the fabric is extremely thin, please consider carefully when planning to use it for rafting and other activities.
- The floor is made of high-weave 210D material, which is completely considering the ultimate folding performance. After our test, it can completely be used for general water sports.
- The weight may vary by ±1.5% in batches.
- Measurement data may vary according to temperature and material difference, which is a normal phenomenon.
- Try to use the skeg to improve the tracking in paddling.
Water-filled footrest
Function:
Water stored inside the footrest adds weight to the lower bow, minimizing yaw and pitching during paddling. With less drag than a bow-mounted skeg, it delivers smoother and more efficient forward motion.
Water-filling procedure:
1. Submerge the footrest in the water to scoop water inside. If the water level is low, use the paddle to assist.
2. Use the markings inside the footrest to estimate the desired water volume.
3. Fold and seal the end of the footrest.
4. Lay the footrest flat with the base of the hose at a relatively higher point.
Open the hose valve to release air. When the water level in the transparent hose exceeds approximately one-third of the hose height, close the valve.
5. Fold the end portion again and secure it tightly.
6. Place the footrest at the very front of the hull, pressing it firmly in place to serve as both ballast and a foot support.
Important Notes:
The tail end of the water-filled footrest must be folded at least four times to ensure a proper seal.
Air should be released through the upper hose as completely as possible. If air is not removed, the water inside the footrest may slosh, which can significantly reduce stability.
Excess air inside the footrest may also increase the risk of ballast water leakage.
Ultralight Spraydeck
The Surveyor is also available with a removable ultralight spraydeck, making it well-suited for autumn and winter paddling. In keeping with the original lightweight design, the spraydeck is lighter and easier to stow than traditional designs, and the centered seating position keeps paddling comfortable.
Lighter and easier to store: Compared to the type C spraydeck used on classic packraft models, the type L spraydeck designed for the Surveyor drops the zipper and large-area Velcro attachments. A point-fixing method keeps the spraydeck light and easy to stow.
Three States of the Spraydeck
Open
When not in use, the spraydeck can be rolled up to the bow, leaving the cockpit fully open.
Semi-open
Attach only the front portion of the deck skirt. This stops paddle splash from entering the cabin while planing, and still allows ventilation and heat dissipation.
Fully enclosed
Attach the deck skirt at both front and back for all-round waterproofing and added warmth — best for fall and winter paddling.
Accessories
6.7 oz (190 g)
5.4 oz (152 g)
0.5 lb (242 g)
0.7 lb (333 g)
Surveyor + Spraydeck only
3.0 oz (86 g)
4.8 oz (135 g)
In Use
